Cummins Base Harness

This is the base harness that you use with all Cummins adapters. It has the ignition on/off switch and powers up the correct adapters.  It has the standard 9 pin diagnostic conector. Cable is fuse protected. Has a togle switch to simulate ignition switch.

You will need the correct adapter for the ECM you want to program and your diagnostic tool. I sell the adapters separate.



You can also use this to test an ECM by taking the truck wiring out of the picture.  Or for test stand operation.

    Any questions please ask.   Thank



___________________________________________________________________________________

Adapter Harness for the CM850-CM876

This is the adapter you will need for the CM850 through CM876 ECM,s. It does have the ROM BOOT switch on it.  This cable is what will hook to the ECM. You will also need the base harness which I also carry and sell separately.                               This one will hook to the following engine / ECM’s.

 CM850 - ISB, ISC, ISL, QSK19 MCRS.

 CM870 – SIGNATURE, ISX, ISM

 CM871 – ISM

 CM875 – ISM

 CM876 – ISX



_____________________________________________________________________________________










Adapter Harness for the CM570

This is the adapter you will need for the CM570 ECM's. It does have the ROM BOOT switch on it. This cable is what will hook to ECM. You will also need the base harness which I also carry and sell separately.This one will hook to the following engine / ECM's.

CM570

ISX, ISM, SIGNATURE



_____________________________________________________________________________







-

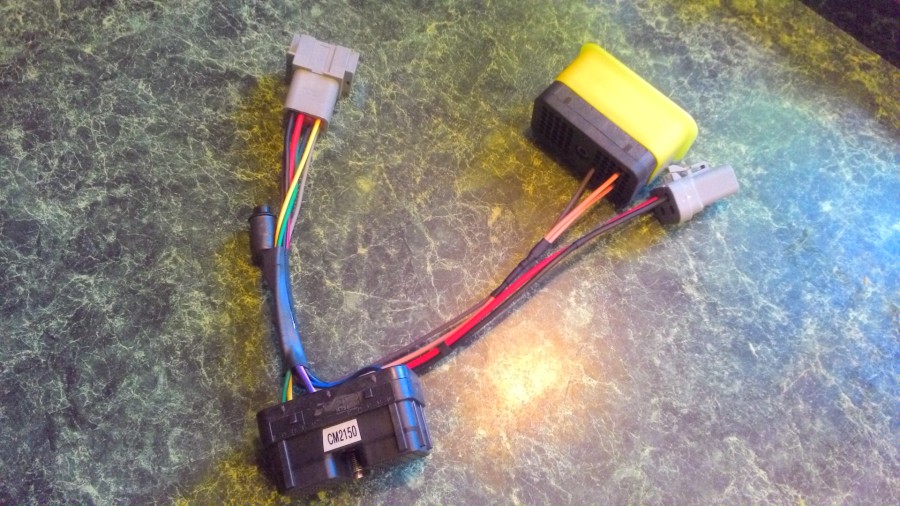

Adapter Harness for the CM2150

This is the adapter you will need to hook to the CM2150 ECM's. It now has the ROM BOOT switch on it. You will also need the base harness which I also carry and sell separately. This one will hook to the following engine / ECM's.
ISB6.7, QSB6.7, ISL, QSK19MCRS











______________________________________________________________________________

Adapter Harness for the CM2250

This is the adapter you will need for the CM2250 ECM". It does have the ROM BOOT switch on it. This cable is what will hook to the ECM. You will also need the base harness which I also carry and sell separately.                                                                                                                                                                                                      This one will hook to the following engine / ECM's.
CM2250

ISX15, ISX11.9, ISB6.7, QSB6.7, ISC8.3, ISL9, QSL9







______________________________________________________________________________

Adapter Harness for the CM2350

This is the adapter you will need for the CM2350 ECM"s. It does have the ROM BOOT switch on it.  This cable is what will hook to ECM. You will also need the base harness which I also carry and sell separately. This one will hook to the following engine / ECM's.

CM2350

ISX12, ISX15, ISL9, ISB6.7













______________________________________________________________________________

PLEASE NOTE THESE HARNESSES ARE AVALIBLE WITHOUT THE ROM BOOT SWITCH FOR FORENSIC AND CRASH ANALYSIS COMPANY'S PLEASE NOTE IF YOU WANT THIS
